Move Smart
As cities evolve and more people seek alternatives to crowded public transport, NEO's Core electric scooter offers the perfect solution for your urban mobility needs. With its dual battery system, NEO’s Core delivers a smooth and comfortable ride for up to 68 km*. Thanks to its portable batteries and practical design, NEO’s Core is always ready when you are. Enjoy the freedom of convenient, eco-friendly mobility and embrace a smarter way to move through the city. (*Range tested in WMTC Class 1 in STD mode at 25°C.)
Comfortable, agile and easy to ride, this new generation Yamaha scooter is powered by a lithium-ion battery and driven by a hub-mounted electric motor that gives you strong and controllable acceleration – but with zero emissions and a super quiet ride! NEO’s: Move Smart.
BITNE KARAKTERISTIKE

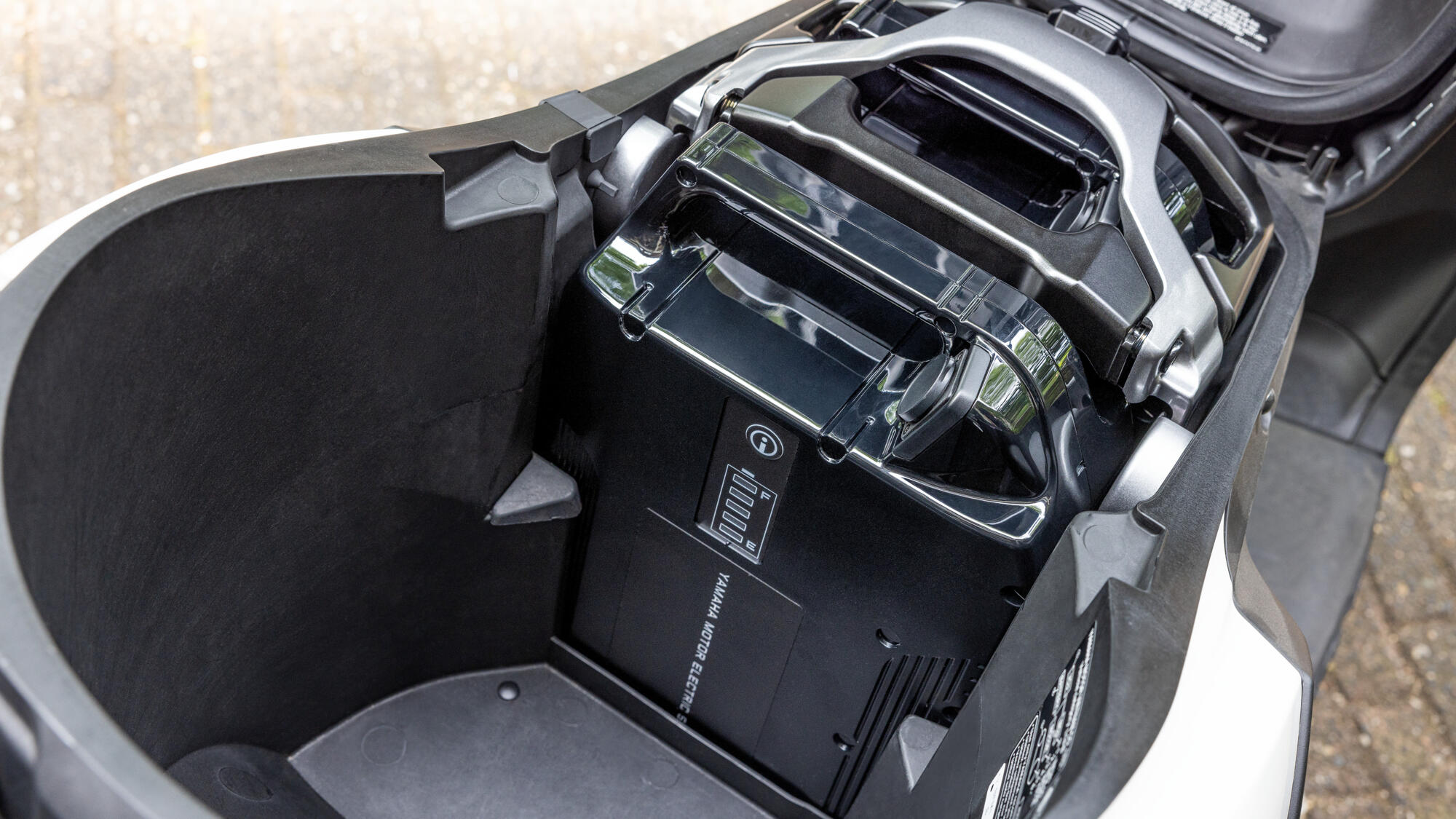

Extended riding range

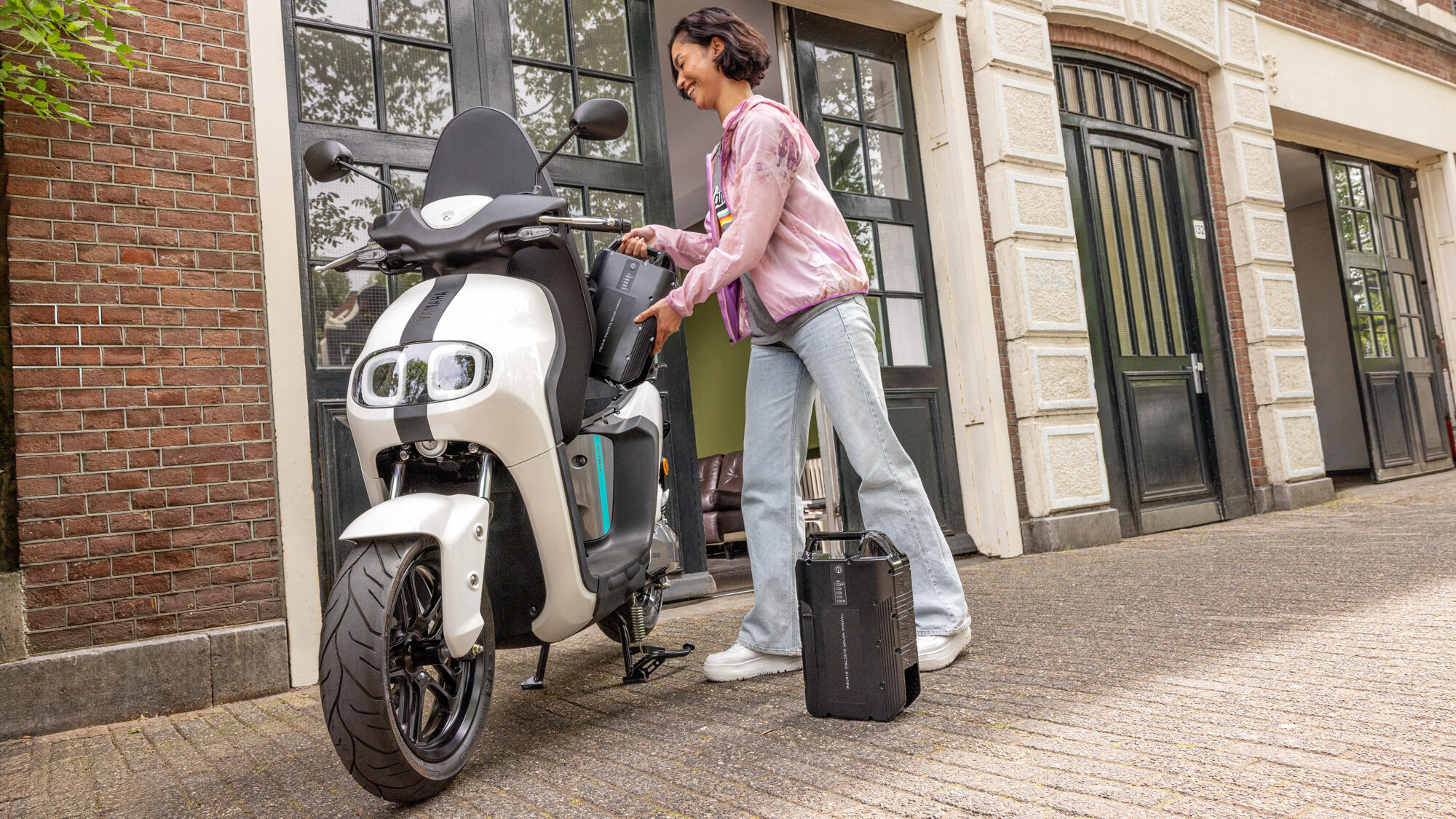

The NEO’s Core model gives you an extended riding range for longer distance urban commuting. Equipped with two portable 50.4V/19.2Ah lithium-ion batteries that can be charged while fitted to the scooter or easily removed and charged at your home or office, the NEO’s Core gives you a potential range of up to 68km*. *Tested in WMTC Class 1 in STD mode, fully charged battery at a temperature of 25°C.
Smooth, quiet and efficient electric power
Simple, stylish and easy to use, the NEO’s electric scooter has the potential to transform the way you live and move in the city by making every journey smoother, easier and more enjoyable! NEO’s combines proven Yamaha quality with low running costs and the many benefits of electric power.

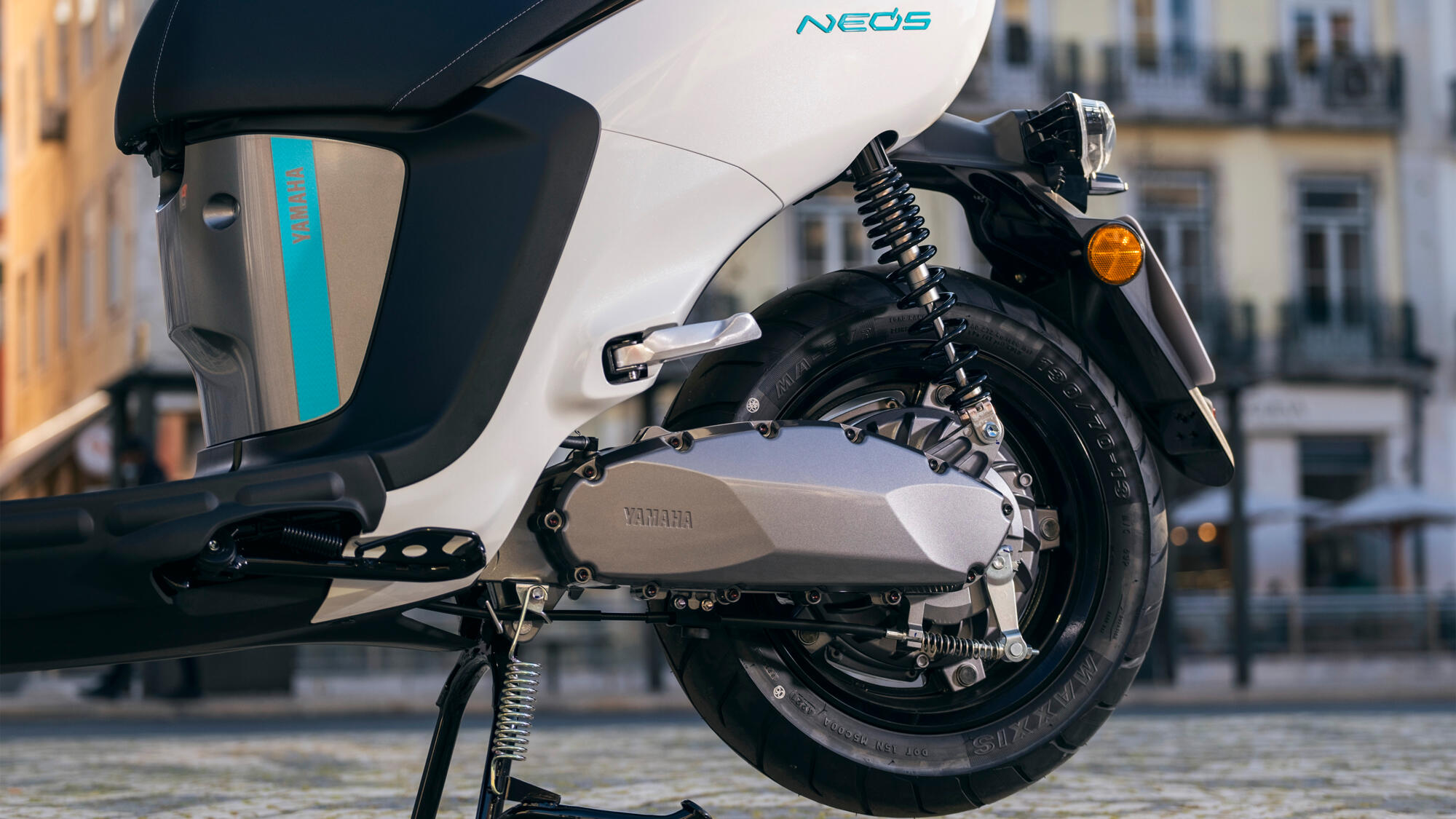

Direct drive hub-mounted electric motor
For maximum efficiency the NEO’s is equipped with the latest generation Yamaha Integrated Power Unit (YIPU) that features an air-cooled brushless electric motor located inside the rear wheel hub. This compact direct drive design eliminates the need for gears or belts and ensures smooth running, strong acceleration and extremely quiet operation.

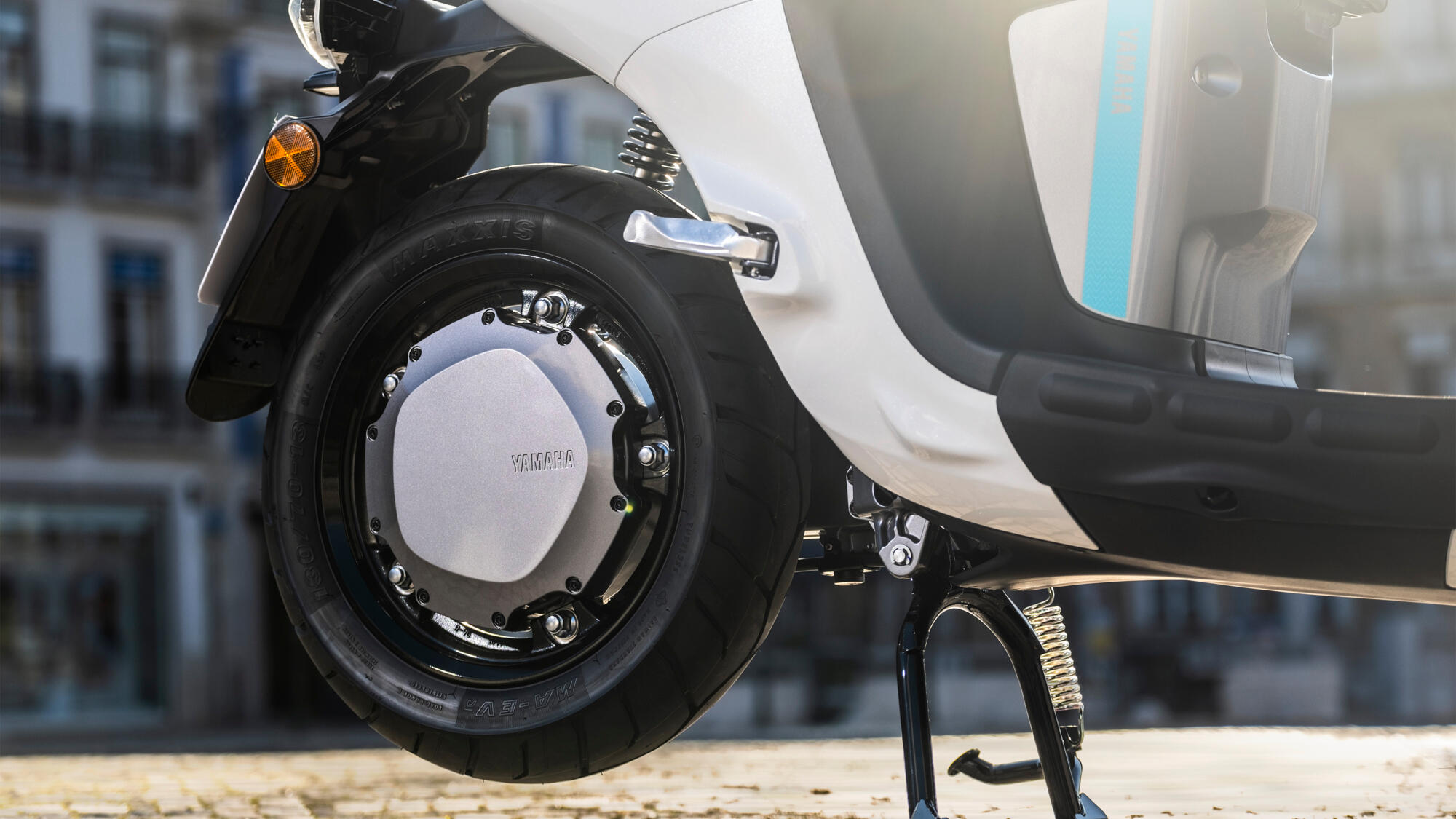

Quick and controllable acceleration
As soon as you pull away on the NEO’s you’ll feel its smooth power delivery and precise control at all speeds. Yamaha has taken extra care to ensure that the throttle design provides you with a smooth, confident feeling when accelerating from a standstill and when riding in slow moving traffic – making this electric scooter an ideal choice for all riders.

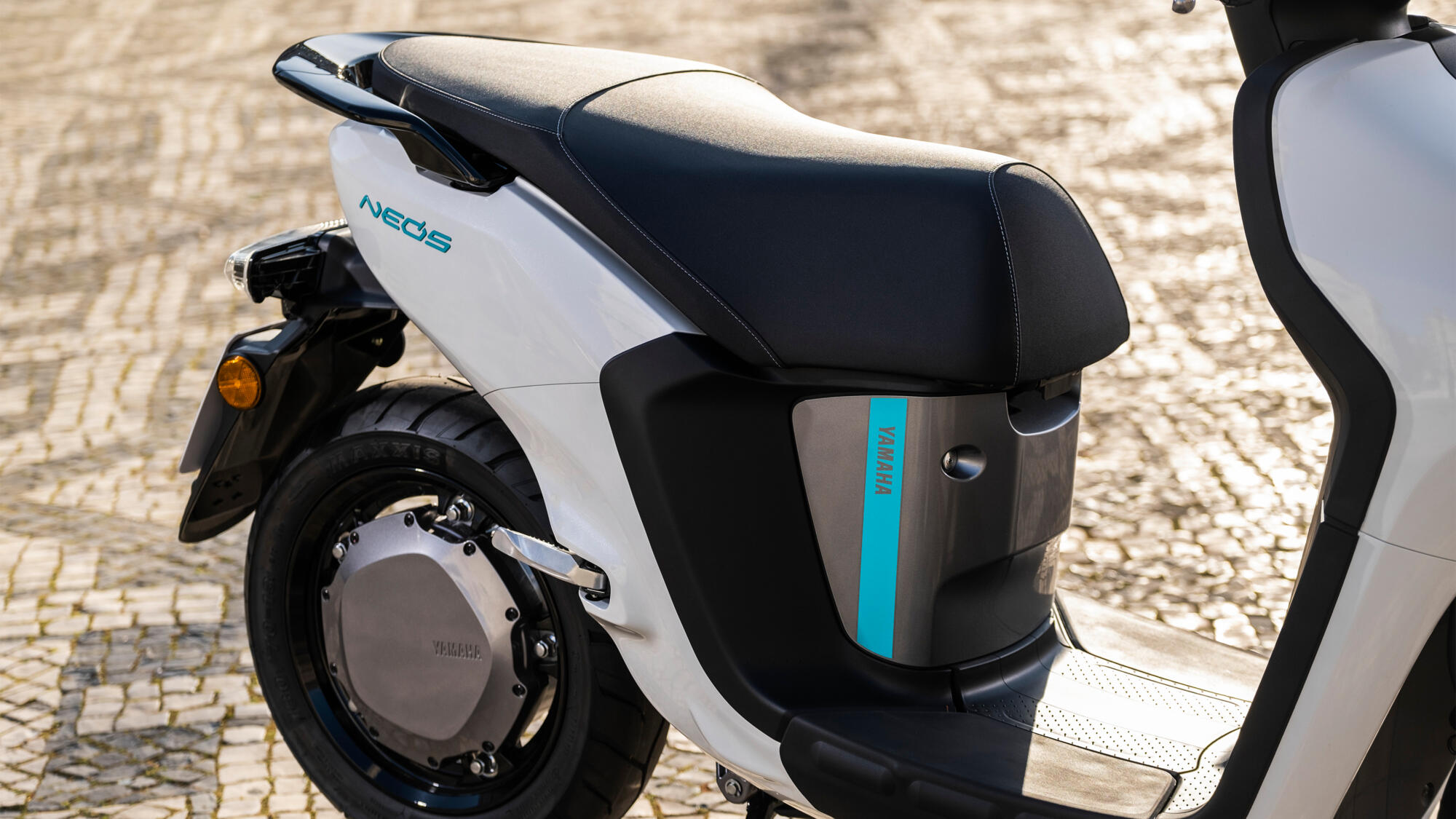

Universal riding position for all sizes and experience
Featuring a relaxed and upright riding position, the new generation electric NEO’s is the ideal vehicle for riders of all ages, sizes and experience who are looking for a responsible and accessible alternative to the car and public transport. And with its simple twist-and-go performance, easy agility and high levels of comfort, this is the smartest choice in zero-emission urban mobility.

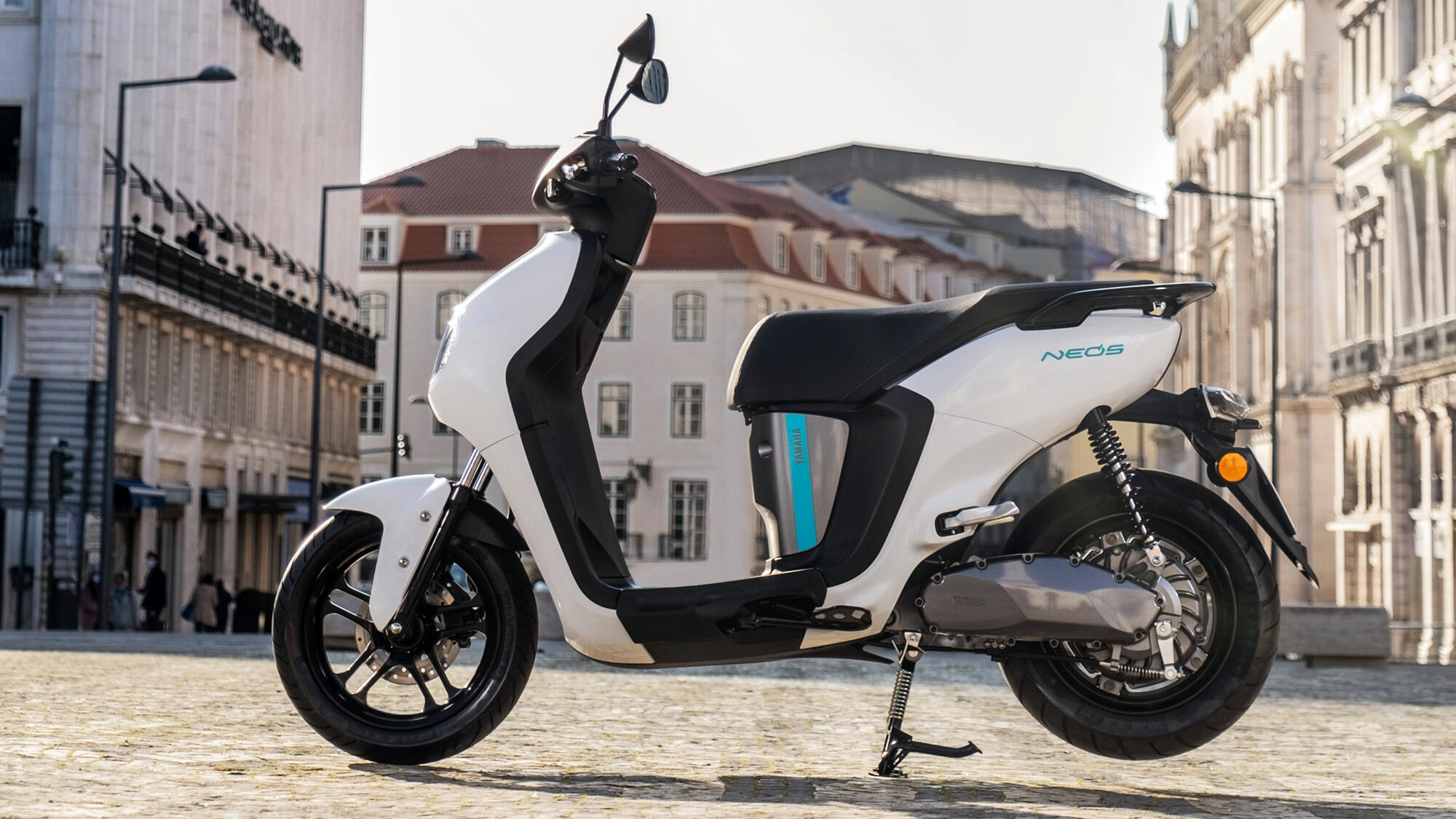

Ultra-quiet running
NEO’s offers you many advantages, including low running costs, ease of use and the ability to access the growing number of ultra-low and zero-emission zones in Europe’s cities. It’s also one of the quietest ways to travel, and in official tests this new Yamaha electric scooter was measured at just 55dB from 7 meters – compared to 71dB for its 50cc combustion equivalent.

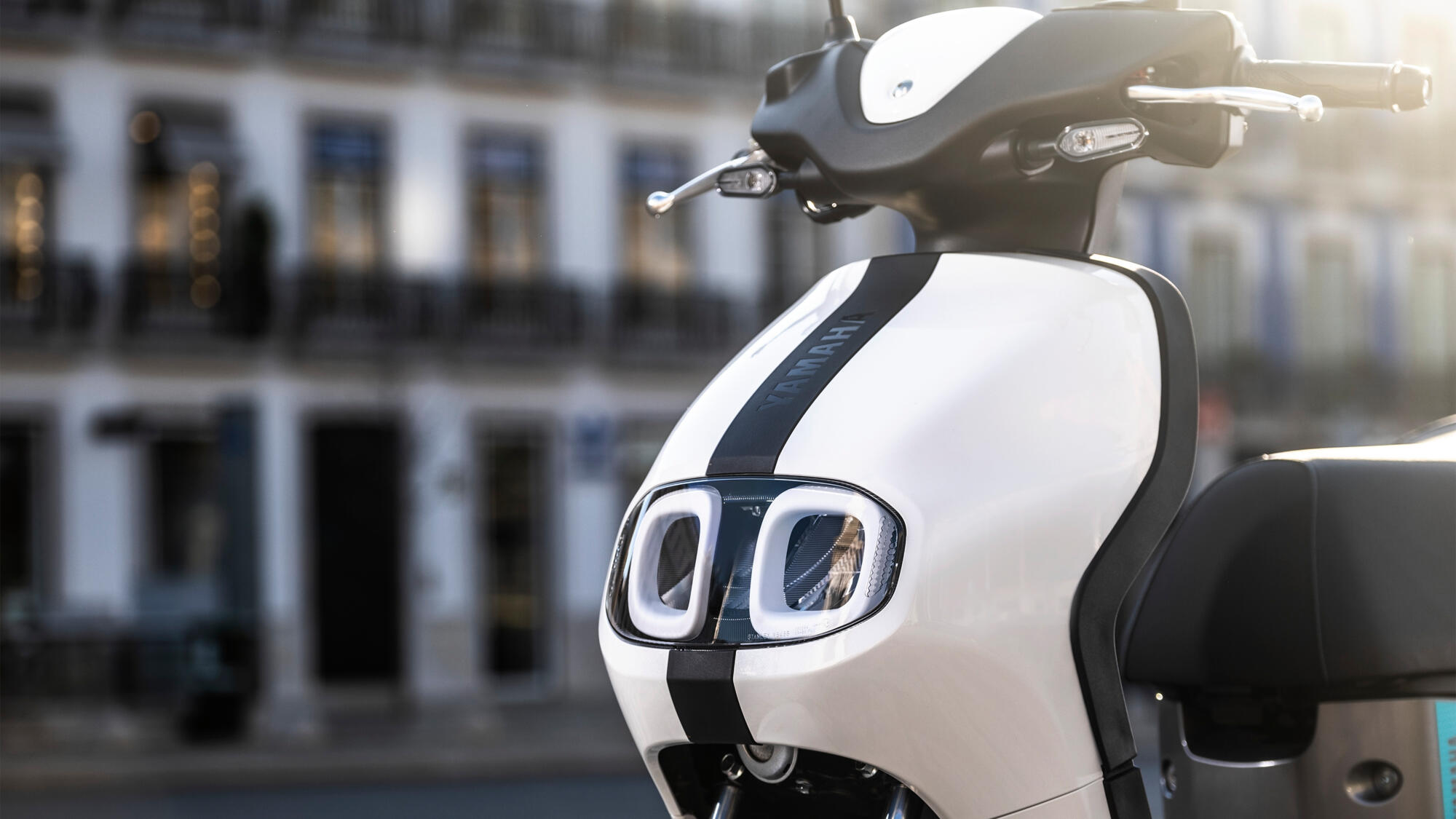

Simple, compact and universal styling
Inspired by the design language of the original combustion NEO’s, the bodywork features soft rounded forms that give NEO’s a smart, sporty and distinctive look with a universal appeal. Clean lines and minimal front and rear overhang emphasize this zero-emission scooter’s compact body, and the spacious footboard area features rubber mouldings on the outline to help protect against minor knocks and scratches.

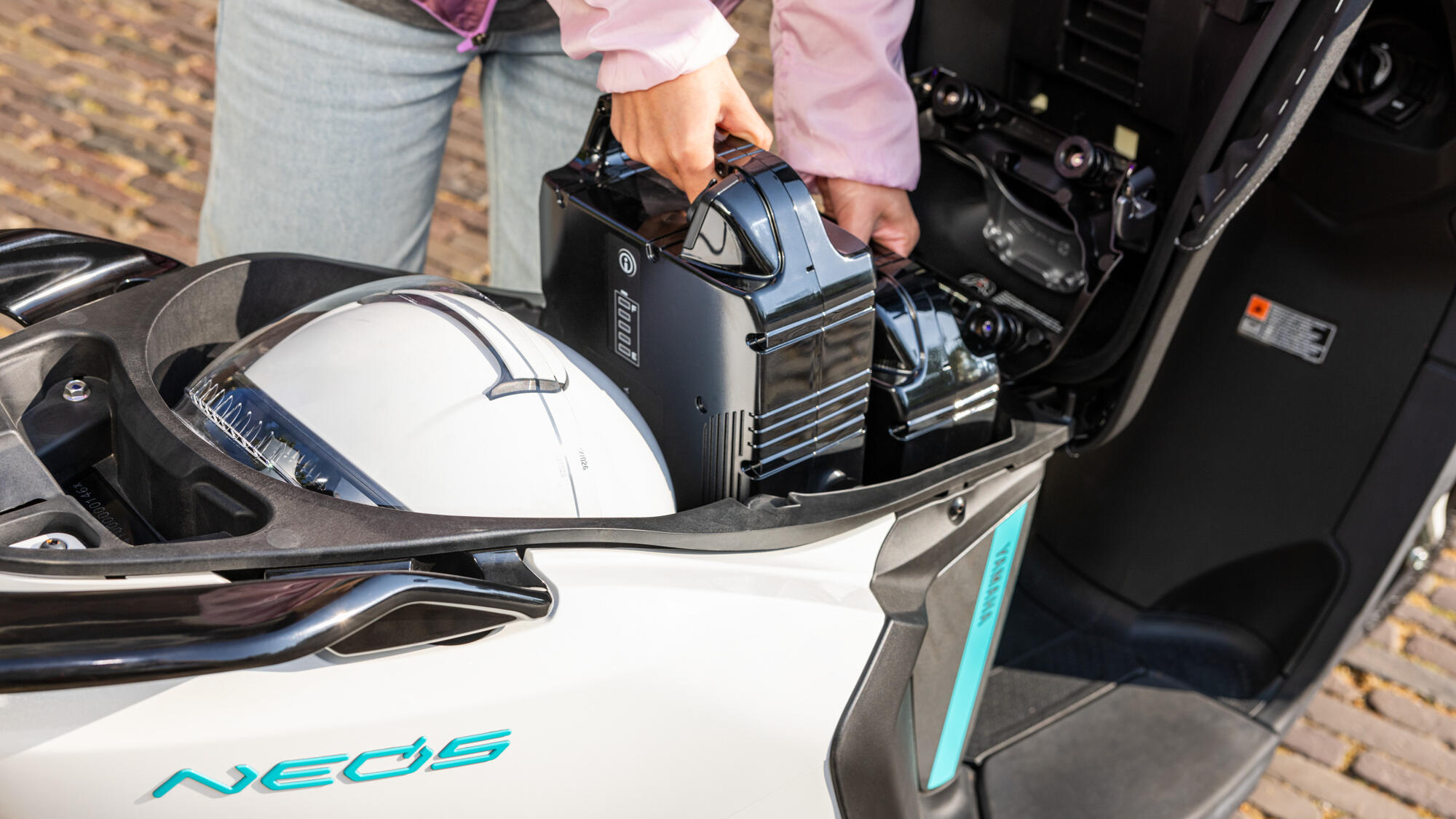

Jet helmet underseat storage
When one battery fitted, the underseat compartment gives 27 litres of storage space that can accommodate one jet helmet or shoes and gym gear. And if you choose to fit also the second battery there’s still enough space to carry a rainsuit or other personal items.

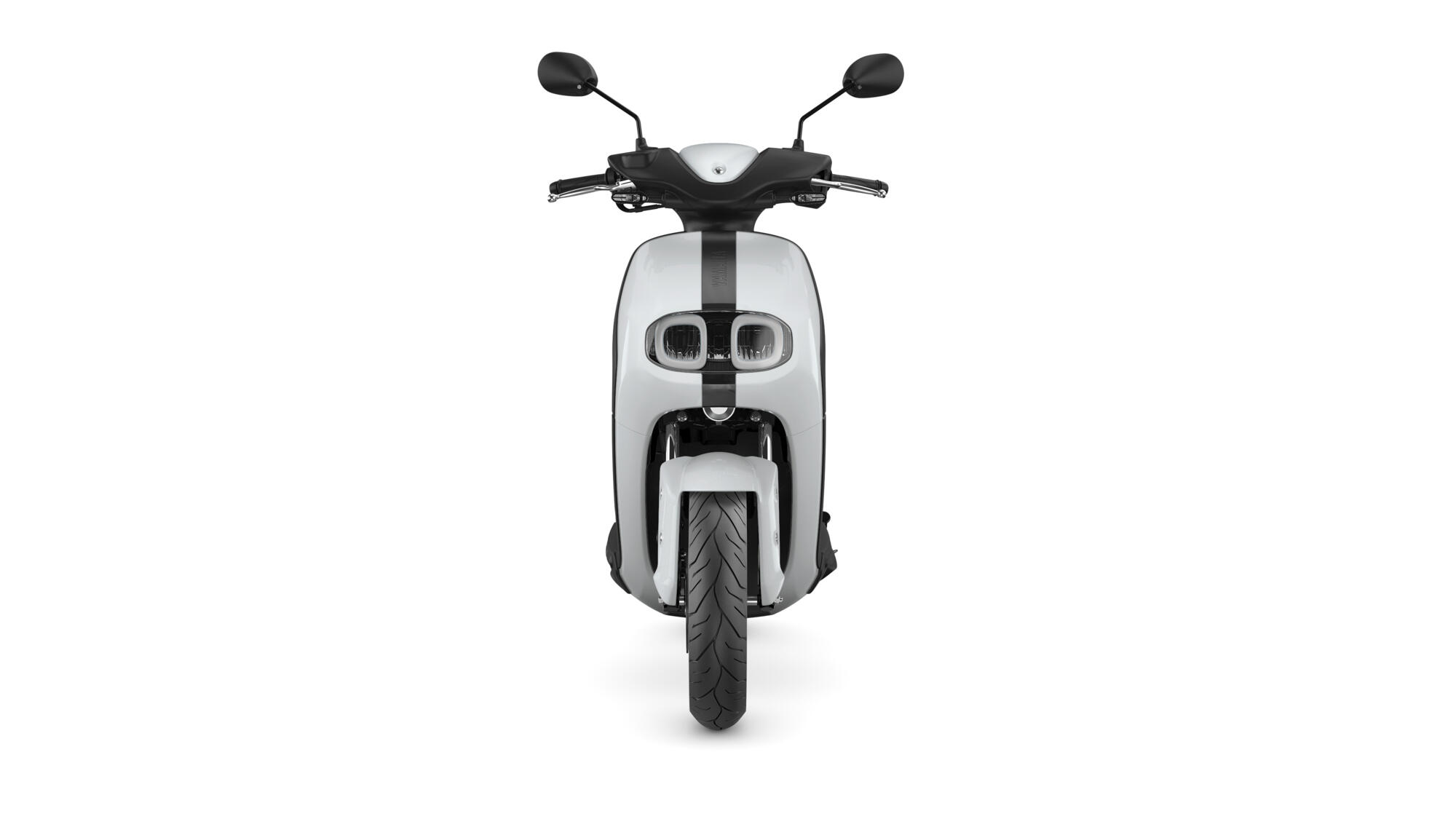

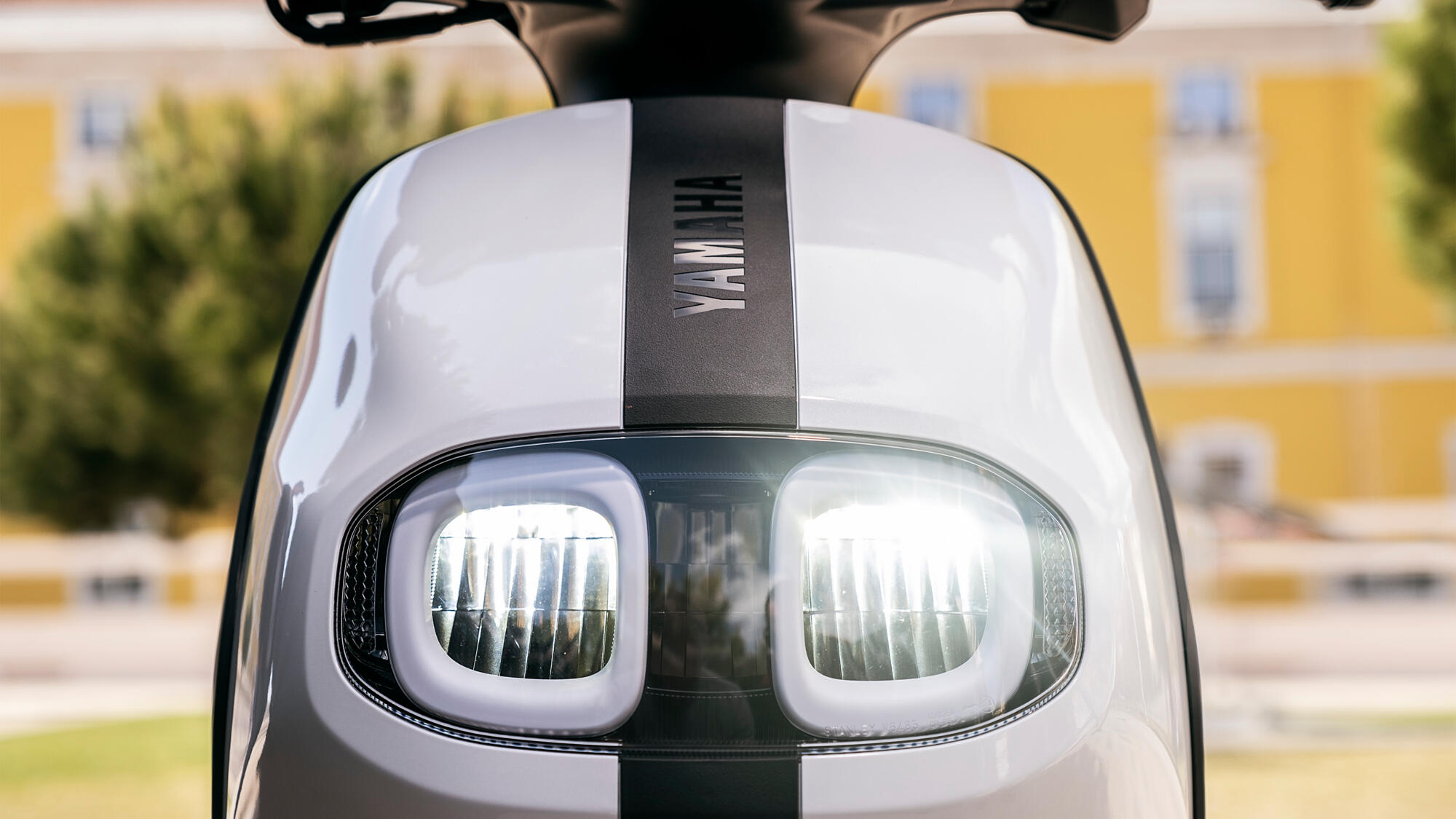

Full LED lighting
Inspired by the face of the original combustion NEO’s, the twin-eye LED headlights provide you with powerful illumination to see and be seen – and are surrounded by white rings that give NEO’s a fresh and contemporary look. At the rear end the single unit LED taillight and LED turn signals underline the scooter’s clean and compact lines.
TEHNIČKA SPECIFIKACIJA
|
Electric motor type |
Excitation 3 phase synchronized motor |
|
Nominal power |
2.3kW @ 424 rpm |
|
Maximum power |
2.5kW @ 400 rpm |
|
Maximum torque |
136.0Nm @ 50 rpm |
|
Battery type |
Lithium ion |
|
Battery voltage, capacity |
50.4V, 19.2Ah(5HR) |
|
Total number of battery packs installed |
2 |
|
Maximum number of battery packs |
2 |
|
Battery fixation |
Removable |
|
1st Battery Range (WMTC Class 1) |
37 km |
|
1st Battery Range, Eco mode |
38.5 km: This range changes by place, riding style and battery degradation. |
|
1st and 2nd Battery Range |
68 km: This range changes by place, riding style and battery degradation. |
|
Battery dimension |
360mm(L)x215mm(D)x105mm(H) |
|
Battery weight |
8.0kg |
|
Energy Consumption(WMTC Class1) |
31Wh/km |
|
Charger type |
Wall charger 220VAC; Output 58.8V, 3A |
|
Charging time (0-100%) |
8 hours: Charging time may vary depending on the charging environment |
|
Charging time (20-80%) |
4 hours: Depending on use conditions and battery degradation, charging time may change. |
|
Frame type |
Underbone |
|
Caster angle |
25°30′ |
|
Trail |
84mm |
|
Front suspension system |
Telescopic fork |
|
Front travel |
90mm |
|
Rear suspension system |
Swingarm |
|
Rear Travel |
80mm |
|
Front brake |
Hydraulic single disc brake |
|
Rear brake |
Mechanical leading trailing drum brake |
|
Diameter of brake disk(Front) |
200mm |
|
Front tyre |
110-70-13M/C 48P Tubeless |
|
Rear tyre |
130-70-13M/C 63P Tubeless |
|
Overall length |
1875mm |
|
Overall width |
695mm |
|
Overall height |
1120mm |
|
Seat height |
795mm |
|
Wheelbase |
1305mm |
|
Minimum ground clearance |
135mm |
|
Vehicle weight (without battery) |
90kg |
